Smart Cylinder C10
€268.00
Nothing changes on your door except the cylinder. The handles stay, the plates stay, no new holes are drilled, and the part that comes out is the part the key went into. Ideal for rented flats and listed doors.
- Only the cylinder is replaced, nothing is drilled
- Handles and door furniture stay exactly as they are
- Adjustable length for different door thicknesses
- Fingerprint, PIN, card, app and key
- Reversible: the old cylinder goes back in minutes
In stock
What makes the Smart Cylinder C10 different
Every other lock on this site replaces the handles. The C10 replaces one component: the euro cylinder, the brass or nickel part that the key goes into. One screw comes out of the door edge, the old cylinder slides out, the C10 slides in, the screw goes back.
That makes it the right answer in three situations. If you rent, because the change is completely reversible and the original cylinder can go back in before you hand the keys over. If the door has handles you like, or ironmongery that matches the rest of the building, because none of it is touched. And if the door is old, panelled or protected, because nothing new is drilled into it.

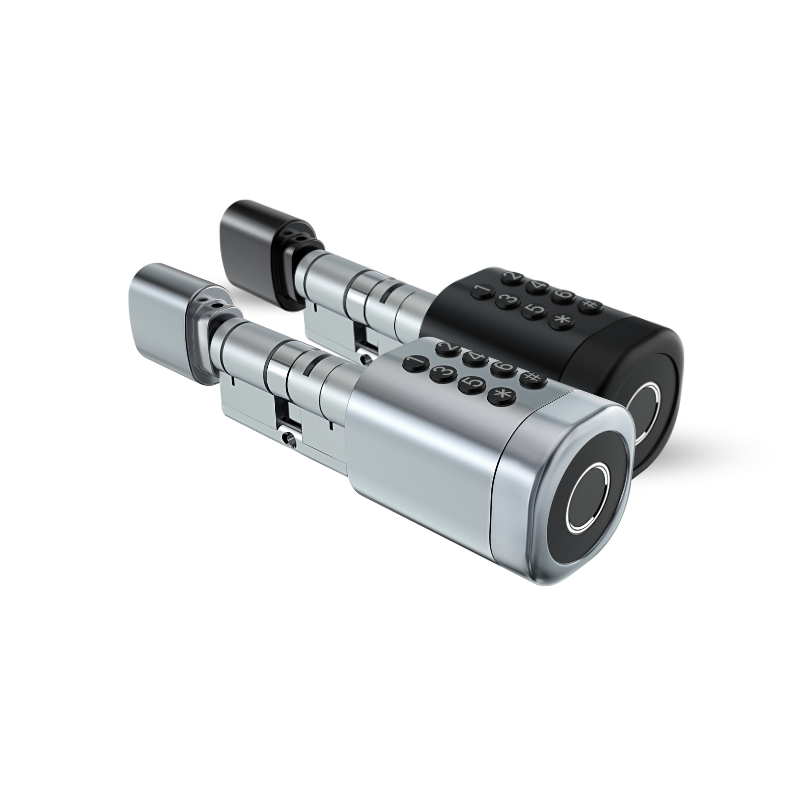

The outside end carries the numeric keypad and a fingerprint reader behind a black cap. The inside end is a plain thumbturn. From the inside the door behaves exactly as it always did.
Five ways to unlock
Fingerprint. The ring shaped reader is in the centre of the outer cap, where the key used to go.
PIN code. The numbers are moulded buttons around the outer barrel rather than a touch surface, which is more reliable with wet or cold hands.
RFID card or fob. Present it to the outer end.
The app. TTLock over Bluetooth, or from anywhere with a G2 gateway in range.
The key. The C10 keeps a keyway, so a mechanical key still opens it.
Will it fit my door?
This is the one product here where measuring is not optional, because the cylinder has to match the door thickness to within a couple of millimetres. The C10 adjusts across a range, which gives you some tolerance, but you still need to start from the right numbers.
Open the door and look at its edge. There is a single screw in the middle of the lock faceplate. Measure from the centre of that screw to the outside face of the door, then from the same screw to the inside face. Those two numbers, in that order, are what we need. A cylinder that protrudes more than about three millimetres can be gripped and snapped, so getting this right is a security matter as well as a fitting one.
What is in the box
- Smart Cylinder C10 with keypad and fingerprint cap
- Fixing screw and cam adaptors
- Two mechanical keys
- Two RFID cards
- Printed quick start guide
Setting it up
Five minutes with one screwdriver. Undo the single screw in the door edge, put the key in the old cylinder and turn it slightly so the cam clears, withdraw it, slide the C10 in, replace the screw. Keep the old cylinder and its keys in a drawer; putting it back is the same five minutes.
Pair it to your phone in the TTLock app before anyone else does, then add fingerprints and codes.
Specifications
| Ways to unlock | Fingerprint, PIN code, RFID card, app, mechanical key |
|---|---|
| Installation | Replaces the euro cylinder only, no drilling, handles untouched |
| Length | Adjustable for a range of door thicknesses |
| Reversible | Yes, the original cylinder can be refitted |
| Keypad | Moulded buttons on the outer barrel |
| App | TTLock, for iOS and Android |
| Connectivity | Bluetooth as standard, WiFi with the optional G2 gateway |
| Code types | Permanent, single use and time limited PIN codes |
| Power | Battery powered with a low battery warning |
| Finish | Chrome, black |
| Suitable for | Rented flats, period doors, offices, rooms, short stay rentals |
Compare with the other LIVLOCK locks
| Model | What it is for | Price |
|---|---|---|
| Smart Lock SLIM | An ultra slim smart lock for standard European doors. Open it with a fingerprint, a PIN, an RFID | €299.00 |
| Smart Lock SLIM C | The SLIM with the cylinder already built in. You get the fingerprint reader, the keypad and the app, | €299.00 |
| Smart Lock SPLIT | A two piece lock: the handle carries the fingerprint reader and the keypad, and the keyhole sits on | €293.00 |
| Smart Lock LONG | The long faceplate model. It covers the screw holes, scuffs and paint shadow the old lock left behind, | €320.00 |
| Smart Lock SQUARE | A clean rectangular plate with square corners, a twelve key pad and the fingerprint reader set into the | €285.95 |
| Smart Cylinder C10 this one | Nothing changes on your door except the cylinder. The handles stay, the plates stay, no new holes are | €268.00 |
Accessories that fit this lock
G2 WiFi Gateway€66.95
TTLock Door Sensor€30.00
RFID Key Fob€4.95
Smart Lock Remote Control€39.55
RFID Card Encoder€164.05
Kboard 20 Keypad€238.95
Questions about the Smart Cylinder C10
Do I need my landlord's permission?
Usually not, because nothing is altered permanently. No holes are drilled, the handles are untouched, and the original cylinder goes back in five minutes when you leave. We would still tell them, but it is a conversation rather than a request.
How do I measure my existing cylinder?
Open the door, find the single screw in the middle of the faceplate on the door edge, and measure from the centre of that screw to each face of the door. Those two numbers are the cylinder size. Send them to us and we will confirm the fit.
Does the thumbturn still work from inside?
Yes, exactly as before. From inside, the door behaves like a normal door.
What if the cylinder sticks out?
Then it is too long and should be changed. Anything protruding more than about three millimetres gives a tool something to grip, which is a recognised way of attacking a door. Measure first and this does not arise.
Can I use it on a door with a thumbturn on the outside?
No. The C10 needs a conventional euro profile cylinder with a keyway on the outside face.
