79,00 €
The Tedee Smart Relay module lets you integrate building entrance doors, garage doors, barriers and other access points with the Tedee app.
The Tedee Smart Relay module is an add-on device designed to secure your electronic lock, garage door, parking barrier or any other device that unlocks with an electrical signal. By adding the Tedee Smart Relay to your setup, you can control these devices from anywhere through the mobile app.

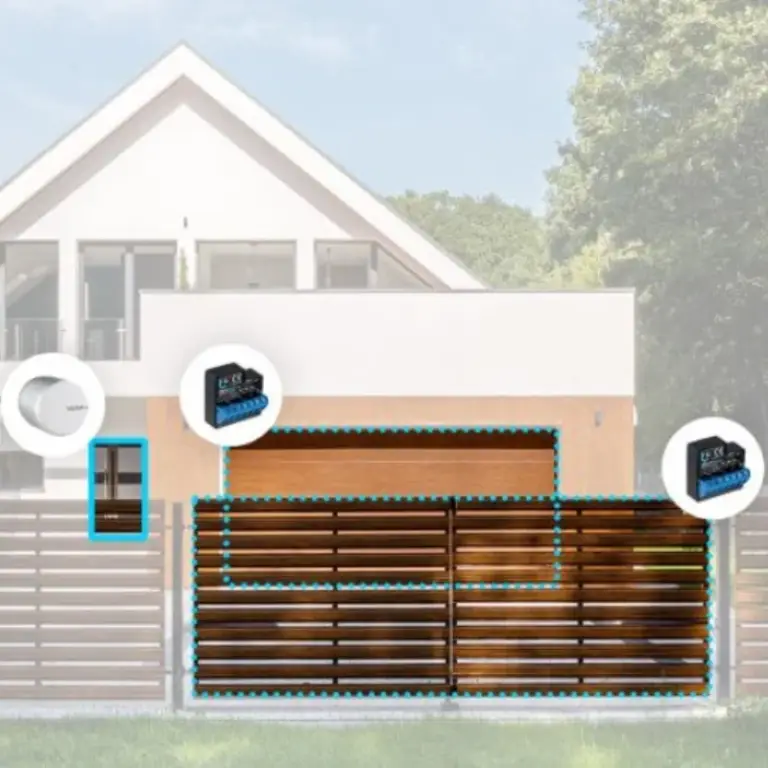

Integrates building entrance doors, garage doors and other access points with the Tedee app.
| Supply voltage | 12-24 V AC/DC |
|---|---|
| Power consumption | Less than 1 W |
| Number of outputs | 1 |
| Output type | Relay |
| Maximum load | 6 A 24 V AC, 6 A 24 V DC |
| Number of inputs | 3 |
| Input type | Logic, closed to COM |
| Input voltage | 12-24 V AC/DC |
| Galvanic isolation | Yes, optical |
| Input polarisation | Detected automatically |
| Housing | Self-extinguishing halogen-free polyurethane compound, thermal class B (130 °C) |
| Protection rating | IP20 |
| Mounting | In a flush-mounted box |
| Transmission | Two-way, encrypted |
| Transmission frequency | 2.4 GHz |
| Communication standard | µWiFi, Wi-Fi compatible |
| Communication mode | Wi-Fi connection through a standard router |
| Control output type | NC/NO relay |
| Maximum power | 144 VA @ 24 V AC, 144 W @ 24 V DC |
| Dimensions | 39 x 39 x 22 mm |
