Description

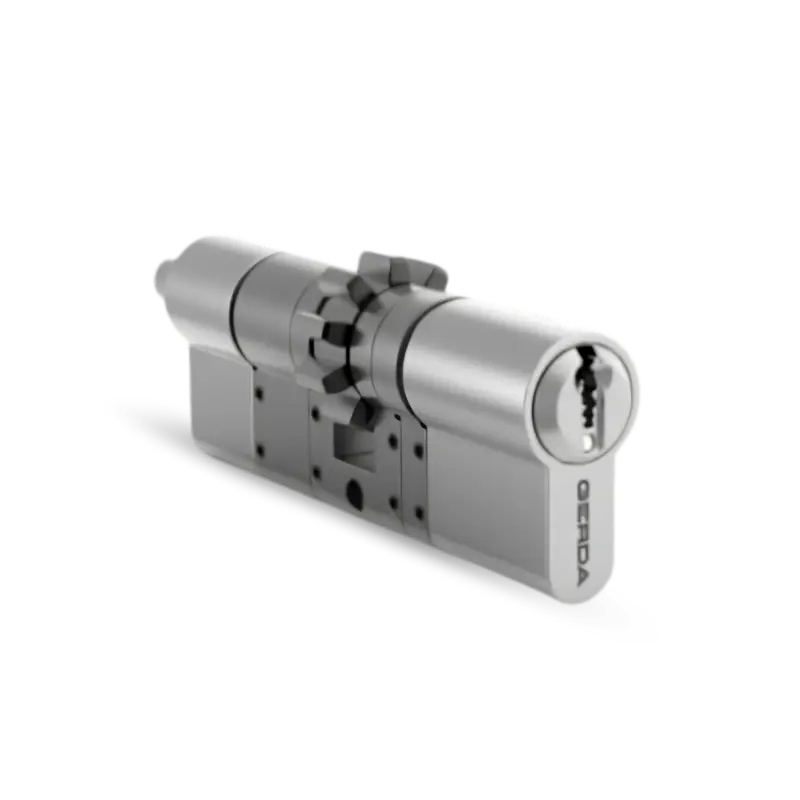

This is a cam cylinder. Its modular construction gives a full range of size adjustment on the inside of the door.
On the outside the cylinder unlocks with a traditional key. On the inside it carries a shaft designed for simple, secure mounting of the Tedee PRO smart lock.
Extra keys can be ordered from GERDA or authorised locksmiths with the included key-code card. Certified to security class 6 according to PN-EN 1303:2015-07.
Note: this cylinder can also be used to install Tedee GO 2 or Tedee GO smart locks with the dedicated Bar adapter (sold separately).
Available lengths on the Tedee shaft side (inside)
- 30 mm (no spacers)
- 36 mm (1 x 6 mm spacer)
- 40 mm (1 x 10 mm spacer)
- 45 mm (1 x 15 mm spacer)
- 46 mm (1 x 6 mm + 1 x 10 mm spacers)
- 51 mm (1 x 6 mm + 1 x 15 mm spacers)
- 55 mm (1 x 10 mm + 1 x 15 mm spacers)
- 61 mm (1 x 6 mm + 1 x 10 mm + 1 x 15 mm spacers)
Keyhole side (outside)
37-68 mm (modular)
Box contents
- Cylinder
- 3 x spacers (6, 10, 15 mm)
- 3 x spacer shafts (6, 10, 15 mm)
- 12 x clamping screws
- 3 x protective / damping stickers
- Mounting screw
- 3 x keys
- Key-code card
- Allen key
- Documentation
